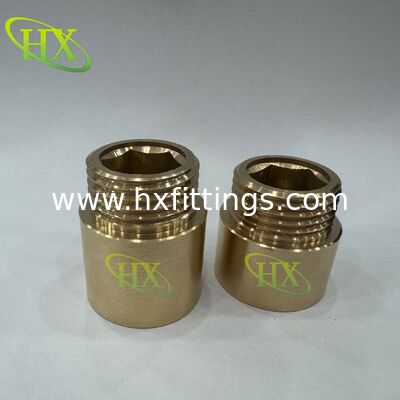

Brass Lead Free Internal Half Threaded Socket Fitting – For Plumbing, Water, Gas & Oil Systems – Hongxin Pipe Fitting

  • Brass Lead Free Internal Half Threaded Socket Fitting – For Plumbing, Water, Gas & Oil Systems – Hongxin Pipe Fitting
  • Brass Lead Free Internal Half Threaded Socket Fitting – For Plumbing, Water, Gas & Oil Systems – Hongxin Pipe Fitting
  • Brass Lead Free Internal Half Threaded Socket Fitting – For Plumbing, Water, Gas & Oil Systems – Hongxin Pipe Fitting
  • Brass Lead Free Internal Half Threaded Socket Fitting – For Plumbing, Water, Gas & Oil Systems – Hongxin Pipe Fitting
Lugar de origem China
Marca HX
Certificação ISO9001
Número do modelo 1/2
Quantidade de ordem mínima 300
Preço 0.66
Detalhes da embalagem Caixa com pálete
Tempo de entrega 15 dias após o pagamento
Termos de pagamento T/T, L/C, União Ocidental
Habilidade da fonte 100000000000 unidades por semana
Detalhes do produto
Material Latão Garantia 3 anos
suporte personalizado OEM Técnica Forjado
Conexão Fêmea Forma Direto
Cor cor de latão amarelo Tamanho 3/8-4
Uso Gas de óleo de água Quantidade mínima 500 unidades
Deixe um recado
Descrição de produto


Product Overview

This Brass Lead Free Internal Half Threaded Socket Fitting is a plumbing component designed to connect pipes in water, natural gas, LPG, and low-pressure oil systems. The term “half threaded” means that the internal bore is partially threaded (typically 50-70% of the total socket depth), while the remaining portion is smooth.

Manufactured by Hongxin Pipe Fitting, this socket fitting uses certified lead-free brass (ASTM C46400 or CW509L equivalent), with lead content below 0.25% by weight, complying with:

  • NSF/ANSI 61 – Drinking water system components

  • RoHS Directive (2011/65/EU) – Restriction of hazardous substances

  • California AB1953 and Vermont S152 – Lead-free plumbing laws

Technical Specifications



Parameter Value / Range
Material Lead-free brass (C46400 / CW509L)
Lead content ≤ 0.25% (certified)
Thread type Internal (female) half thread
Thread standards BSP (BS 21) or NPT (ANSI B1.20.1)
Size range (nominal) 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Working pressure – water 400 PSI (27.6 bar) at 23°C
Working pressure – gas (natural/LPG) 300 PSI (20.7 bar) at 23°C
Working pressure – oil (low pressure) 250 PSI (17.2 bar) at 23°C
Temperature range -20°C to +120°C (-4°F to +248°F)
Thread length (threaded portion) 40-60% of total socket depth (size dependent)
Smooth bore length 40-60% of total socket depth

Applications

  • Potable water plumbing – Residential and commercial drinking water lines

  • Natural gas and LPG systems – Indoor and outdoor gas distribution

  • Low-pressure hydraulic oil – Return lines and lubrication circuits (non-shock)

  • HVAC systems – Chilled and hot water loops

  • Compressed air – Low to medium pressure (≤ 250 PSI recommended)

Why Choose Hongxin Pipe Fitting?



Reason Specific Benefit
Certified lead-free compliance Third-party test reports available for NSF/ANSI 61, RoHS, AB1953
Factory direct pricing No trading company markup – savings of 15-25% on bulk orders
Precision half threading Consistent thread depth and smooth bore transition – no burrs or step defects
100% thread gauge inspection Each fitting checked with Go/No-Go gauges before packaging
Thread standard accuracy BSP or NPT produced to BS 21 / ANSI B1.20.1 tolerances
Custom size availability Sizes from 1/4" to 2" as standard; larger sizes (2-1/2" to 4") on request
Pressure test available Optional hydrostatic testing at 1.5x rated pressure
Lead time 7-12 days for samples, 20-25 days for 20ft container (MOQ 5,000 pcs)
Global shipping Export documentation provided – 50+ countries served

Hongxin Pipe Fitting has manufactured brass plumbing fittings for over 12 years, supplying to plumbing wholesalers, gas utility contractors, and industrial distributors. Our lead-free half threaded sockets are produced on CNC lathes with automated thread cutting, ensuring dimensional consistency to ±0.05mm.

Product Description

Brass lead free internal half threaded socket fitting from Hongxin Pipe Fitting for plumbing, water, gas, and oil systems. Lead-free brass C46400, lead ≤0.25%, NSF/ANSI 61 compliant. Internal half thread (BSP or NPT), sizes 1/4" to 2". Working pressure: water 400 PSI, gas 300 PSI, oil 250 PSI. Temperature -20°C to +120°C. Factory direct, 100% thread inspected.
