1/2 Female 3/4 Male soild brass water tank connector theaded bulkhead fitting

  • 1/2 Female 3/4 Male soild brass water tank connector theaded bulkhead fitting
  • 1/2 Female 3/4 Male soild brass water tank connector theaded bulkhead fitting
  • 1/2 Female 3/4 Male soild brass water tank connector theaded bulkhead fitting
  • 1/2 Female 3/4 Male soild brass water tank connector theaded bulkhead fitting
Lugar de origem China
Marca HX
Certificação ISO9001
Número do modelo 1/4
Quantidade de ordem mínima 300
Preço 0.66
Detalhes da embalagem Caixa com pálete
Tempo de entrega 15 dias após o pagamento
Termos de pagamento T/T, L/C, União Ocidental
Habilidade da fonte 100000000000 unidades por semana
Detalhes do produto
Material Latão
Deixe um recado
Descrição de produto
Bbrass merchant nipple/socket details
Material Carbon steel, Alloy steel, Stainless steel, Brass
British Standard Threads: BS21
DIN standard Threads: DIN2999
American Standard Threads: ASTM A865-9
Hydraulic Test Working Pressure: Max 1.5MPa / Test Pressure: Max 2.5MPa
Temperature -20 ~ 120°C
Model Half coupling/socket, full coupling/socket, Nipple, KC, HOSE
Surface Galvanized / Electro galvanised / Normal black/Shining black
Size  1/2
Length 10mm , 15mm, 20mm , 25mm, 30mm, 40mm, 50mm, 60mm
Series Heavy, Standard, Medium, Light series
Connection Female/Male
Shape Equal
Application Connected to pipes with water, oil, gas
Package Cartons (with/without pallets)
Delivery 30-45 days after deposit

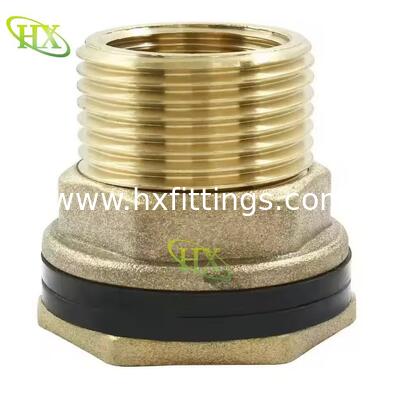

1/2 Female 3/4 Male Solid Brass Water Tank Connector – Threaded Bulkhead Fitting

This 1/2 Female 3/4 Male Solid Brass Water Tank Connector is a threaded bulkhead fitting designed specifically for installing through the wall of water tanks, reservoirs, barrels, or other liquid storage containers. It allows you to connect a 1/2 inch female thread on one side (inside the tank) and a 3/4 inch male thread on the other side (outside the tank), enabling easy hose or pipe attachment for inlet or outlet applications.

Manufactured from solid brass, this bulkhead fitting offers excellent corrosion resistance, high mechanical strength, and long-term durability even in continuous contact with water. Unlike plated or low-grade materials, solid brass ensures no rust, no degradation, and safe use for potable water systems.

The threaded design provides a secure, leak-free seal when used with the included rubber gasket or sealing washer. The fitting passes through a pre-drilled hole in the tank wall and is tightened from the outside, creating a tight compression seal. It is compatible with BSP or NPT thread standards (please confirm before ordering).

Typical applications include:

  • Water storage tanks and cisterns

  • Rainwater harvesting barrels

  • RV and marine water systems

  • Industrial liquid containers

  • Aquaculture and hydroponic systems

Operating temperature range: -20°C to 120°C. Maximum working pressure: 150 PSI (10 bar) for tank wall mounting (pressure limited by tank strength).
